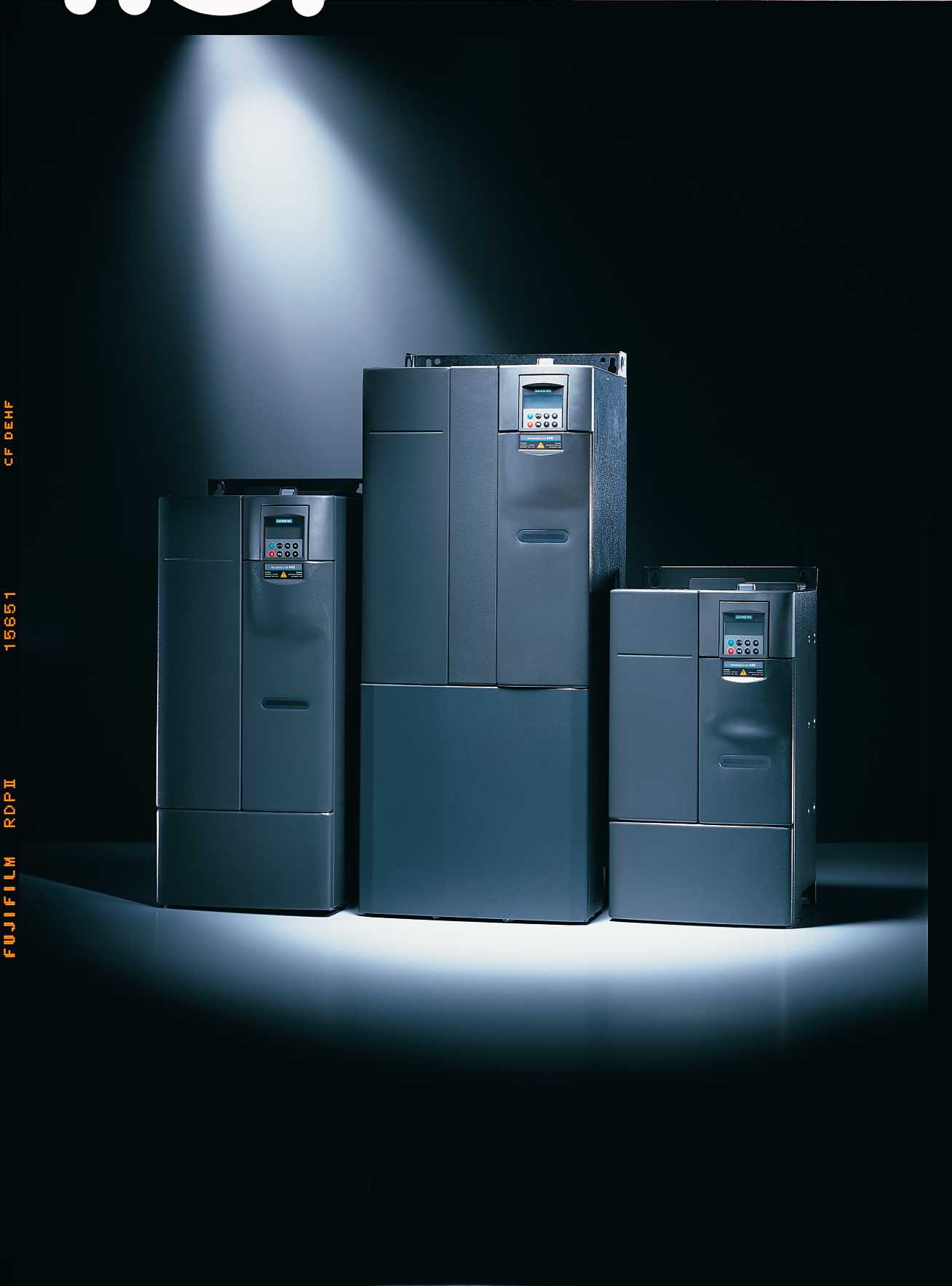

MICROMASTER 430

The specialist for pumps and fans

Pumps, fans are often controlled based on traditional and tried and tested control procedures. A decisive disadvantage: The motor is constantly running at rated speed with maximum flow rate – although this is rarely required in practice.
The result: continuous operation with a high power loss, e. g. throttle control. In variable-speed operation with a frequency drive, however, a great amount of energy can be saved.
Frequency drives saves additionally by adapting to the optimum operating point. Variable-speed drives depend on the type of driven machine. This is where optimized machines for as pumps, fans or compressors show their “economical side”.

Every task performed by a drive system involves its own specific requirements. There is therefore a demand for inverter solutions that can be easi- ly and flexibly adapted to cope with the broadest variety of challenges. It is exactly this flexibility which characterizes our modular MICROMAS- TER 430. Specially for use with pumps and fans in industry, it performs a wide variety of tasks in similar applications as well. Compared to the MICROMASTER 420, it features greater power efficiency and has more inputs and outputs as well as an optimized operator panel with switch- over between manual and automatic modes of operation.

Typical uses

Specially suitable for pumps and fans.

MICROMASTER 430 - Technical data

Voltage and
power ranges		 380–480 V, ± 10%,
3 AC, 7.5 to 250 kW (10 to 300 HP)
Operating temperature –10 °C to +40 °C
Process control Internal PID controller
Types of control FCC (Flux Current Control), multipoint characteristic (parameterizable V/f characteristic), V/f characteristic
Inputs 6 digital inputs, 2 analog inputs, 1 PTC/KTY input
Outputs 2 analog outputs, 3 relay outputs
Link-up
to automation		 The ideal partner for your automation needs, from connection to SIMATIC S7-200 to integration in TIA with SIMATIC and SIMOTION.

Its strengths in brief

Compact housing
Easy to install
Guided commissioning
Numerous communications options
Ability to cope with high starting tor- ques
FCC control (Flux Current Control) for high drive quality, even when load changes occur
Integrated activation of up to three additional drives (motor staging) for low-cost power multiplication for pump and fan drives
Bypass support for rapid motor changeover to direct mains opera- tion for maximum process safety
Energy-saving function with motor shut-off for maximum energy saving without altering the availability of full drive output
Dry-running detection for pump drives
3 sets of drive data from which can be selected in order to adapt the inverter to different operating circumstances
Compound braking for controlled rapid braking
4 skip frequencies for minimizing stress on pipe networks or on the load machine when resonance occurs
Increase of equipment availability due to automatic restart
Minimal stress on motor when inverter connected to rotating motor
Evaluation of motor temperature by means of PTC/KTY input for integra- ted motor protection
Prepared for use in IT networks
Variants with an integrated EMC filter round off the range of products and help to reduce the amount of instal- lation work needed.
